Comfort-Stim TENS

Comfort-Stim TENS

PAIN RELIEF

HAND-HELD PAIN RELIEF DEVICE
For Conservative Non-Invasive Pain Management

TRANSCUTANEOUS ELECTRICAL NERVE STIMULATOR

Many clinical studies have proven the effectiveness of TENS for effective pain relief. For more than 30 years now, TENS has become an established and widely used method of therapy for the treatment of many acute and chronic pain syndromes.

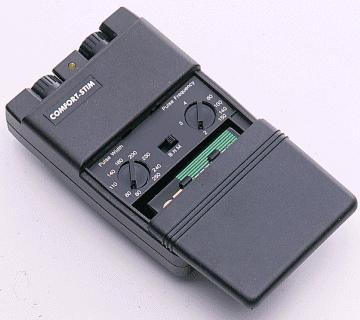

Comfort-Stim Innards

Zoom in

Pain warns the body of injury. Without it, vital parts of the body might be injured without our knowledge. Pain, once diagnosed serves no apparent purpose, especially long lasting or persistent pain. The Bioscope TENS transmits small electrical pulses through the skin to the underlying peripheral nerves to help control this pain. It's easy to use, safe and portable and this makes it a preferred treatment over the long term use of medications, nerve blocks, or surgery for chronic pain.

Þ VERSATILITY - Delivers effective treatment for many different chronic and acute pain syndromes. Dual channels allow for treatment on two separate painful sites at the same time.

Þ FLEXIBILITY - Choose one of 3 stimulation modes, independent dual channels, and fully adjustable intensity, pulse width and pulse frequency controls. All these features afford the user complete control of their pain management program.

Þ PORTABILITY - Unbelievably it only weighs 130 grams including the battery. It will clip onto a belt or may be hidden inside a pocket and thus allow the user the freedom to treat themselves at work or wherever they may be. The unit is supplied in a hard protective carry case with all its necessary accessories for complete portability.

HOW DOES TENS WORK: Conventional or high frequency TENS is based on the theory that continuous mild electrical activity may block the pain signal travelling to the brain. If the pain signal does not get through to the brain, the pain is not “felt”. Low frequency TENS is based on the theory that short bursts of electrical activity may cause the body to release its own pain relieving substances, called endorphins.

INDICATIONS: Transcutaneous Electrical Nerve Stimulation (TENS) devices are used for the symptomatic relief and management of chronic (long term) intractable pain and as an adjunctive treatment in the management of post surgical and post traumatic acute pain problems. Some examples of pain syndromes that may be treated using TENS are :-

Arthritis

Osteoarthritis

Cervical spondylosis

Low back pain

Fibrositis/Myofascial pain syndromes

Acute sprains/strains e.g. Sports injuries

Tendinitis/Bursitis

Carpal Tunnel syndrome

Radiculopathy

Peripheral nerve injuries

Phantom limb pain

Post herpetic neuralgia

Post operative pain

Spinal cord disorders

Pain in the terminally ill e.g. Metastasis

Labour pain

Many other problems concerning nerves, muscles and bones.!!!

TECHNICAL SPECIFICATIONS:
Channels: Dual, isolated
Pulse amplitude: 0 to 80ma (500 ohm load)
Pulse freq: 2 to 150Hz, adjustable
Pulse width: 60 to 250 microseconds, adjustable
Modes: Burst, continuous, modulated
Burst mode: 7 pulses per burst, 2 bursts per second
Modulation mode: Pulse width varied over nominally 4.0 seconds
Waveform: Modified square wave with “0” net DC component
Power source: 9 volt alkaline battery or similar rechargeable cell
Battery life: 70 hours average
Size: 24*64*95mm
Weight: 130 grams incl. battery

Approved for sale by the Dept of Health
