Combo 2000 - Combination Therapy Machine

Ultrasound, Electrical Stimulation & Light Therapy in one unit


Zoom in
The Combo 2000 is a portable ultrasound and electrotherapy unit ideally suited for intensive use in either a busy practice environment or for use by mobile therapists for on site treatments at a patient's home or on the sports field.

The Combo 2000 uses a microprocessor controlled circuit to ensure stable and reliable operation with important safety features incorporated into the circuit design.

With the addition of the remote control, the Combo 2000 transforms itself into a fully adjustable electrical muscle stimulator for effective muscle rehabilitation.


Zoom in


Light Therapy Probe

Designed for ease of use and convenience.

  • Combo 2000 has a built in charger circuit: this means no more problems with faulty or tangled wiring, losing, breaking or carrying external chargers

  • High capacity battery: This ensures long periods of use when power outages occur or when working away from the practice. No battery "memory effect"

  • Battery monitor: You can now easily monitor the battery charge state so you will know how long before you need to recharge the battery - valuable information, especially if you are a mobile therapist. You can however still use the Combo 2000 on mains power even if the battery is completely discharged.

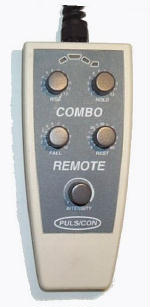

Remote Control (optional)

Zoom in

Rise - controls the rise time of the pulse in seconds from 0 - 12 seconds
Stimulation - controls the stimulation period of the pulse from 0 to 12 seconds
Down time - controls the fall time of the pulse from 0 to 12 seconds
Rest
- controls the rest period (off time) of the pulse from 0 to 60 seconds

Pulsed/continuous
– select between pulsed or continuous mode

4 LED’s (lights) give a clear indication if the stimulation is in rise, rest, fall or stim mode

 The Combo Remote Control adds functionality to the Combo 2000. By using the remote control with your machine, you can now have effective control over muscle stimulation with the added convenience of allowing the patient to lower or increase output intensity to their comfort level. The remote can also be used as an intensity control when muscle stimulation is not required.

Accessories


Ultrasound Treatment Head

Features true contact control that ensures accurate delivery of the ultrasound selected
. The casing, cable and holder are of the best quality and very difficult to break.


Zoom in

Cable and electrodes for electrical stimulation


Electrodes

Moulded sockets ensure longer service life



Standard accessories also include:

Moist pads

Velcro strap

Power cable

Users manual





Specifications


Ultrasound
Ultrasound Frequency:
1MHz continuous or pulsed
Ultrasound Intensity: Max 1.5W/cm² continuous, Max 3W/cm² pulsed
Treatment Head: 1MHz with 5cm² effective radiating area. True contact control and visual indication for patient contact. Waterproof.



Electrical Stimulation

Interferential Current
Carrier Frequency:
4000Hz

Base Frequency: 0 - 150Hz

Sweep Frequency: 0 - 100Hz, 6/6 seconds
Current Intensity: 0 - 100mA constant current output



Medium Frequency Direct Current (double phase rectified alternating current)
Carrier Frequency: 4000Hz
Base Frequency: 0 - 150Hz

Sweep Frequency: 0 - 100Hz, 6/6 seconds
Current Intensity: 0 - 100mA constant current output


Russian current (with remote control)

Carrier Frequency: 4000Hz
Burst: 50, 60, 70, 80, 90, 100, 110, 120, 130, 140 Hz
Interval Ratios: 1:1, 1:2, 1:4
Current Intensity: 0 to 100mA constant current output

Light Therapy
Light Output:
100mw
Beam Width:
25mm

Frequency: 640nm


Timer: 0 to 30 min adjustable (30 second and 1 minute intervals)
Power Source:
Battery or mains operated with built in battery charger
Casing:
High quality ABS plastic
Warranty:
2 Years

© 2000 Alcomed Medical Supplies cc
